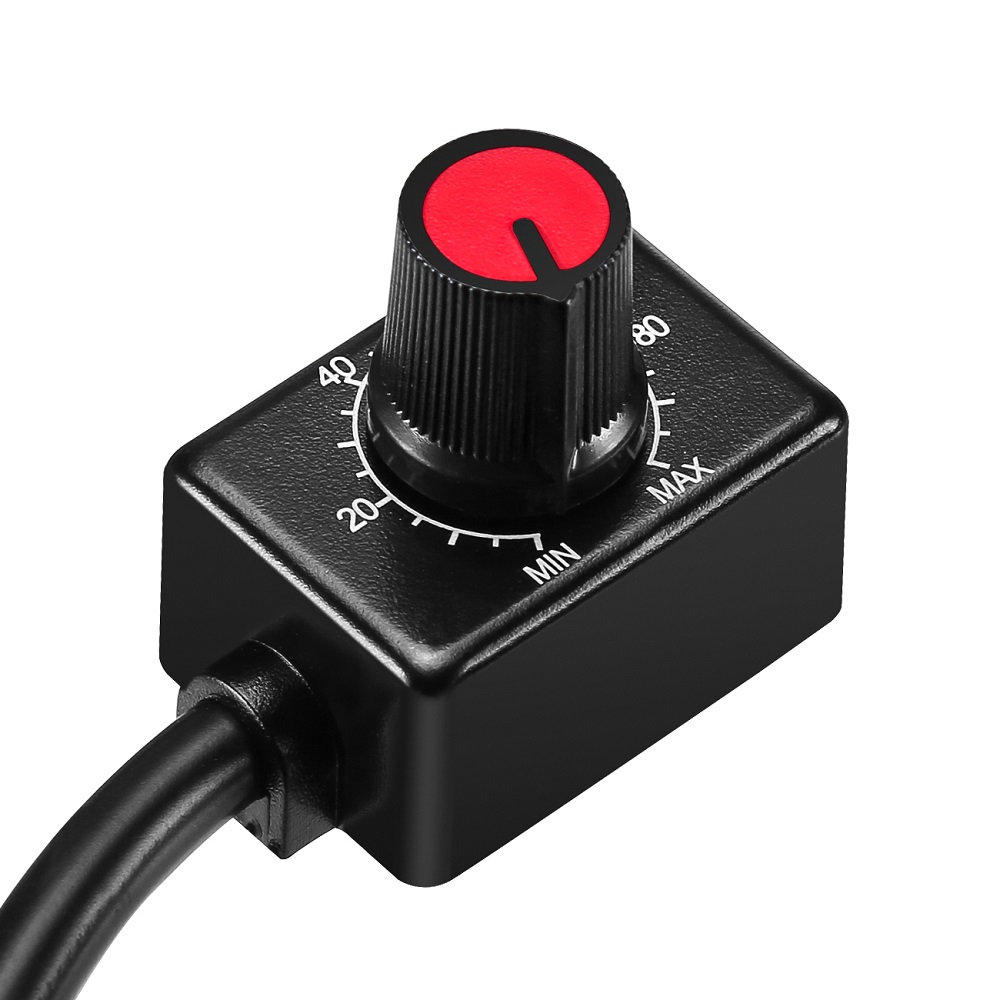

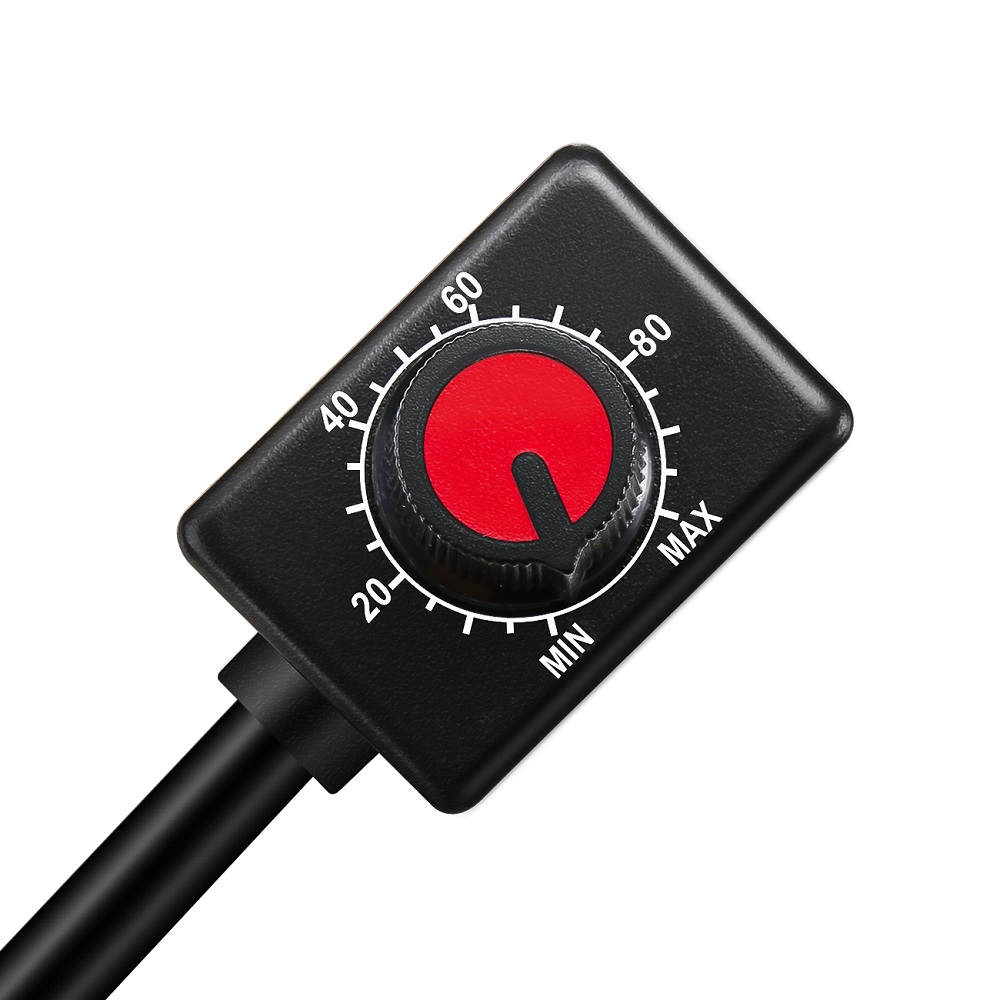

DC 0/1-10V Knob LED Dimmer HAK-DC010V

Model No.: HAK-DC010V. PWM 0-10V Dimmer Adjustment Range: 5-100%, Stepless Dimming and No Flickering or Humming. This 0-10V or 1-10V DC LED Dimmer Knob Controller Rotary, which can be widely used with downlight, track light, wall washer light, plant light, etc. Place the driver away from direct heat sources and in well-aired spaces. If the driver is built-in, sufficient ventilation must be ensured.

Inquire Now Next Product

Main Features

This 0-10v dimmer knob for led lights is ONLY need to be connected the 0-10V / 1-10V Dimmable LED Driver. And it can be compatible with most of the LED drivers.
The low voltage pwm 0-10v dimmer is for the LED lights that have a separate dimmer circuit. It's specifically made to drive a PWM circuit built into the light.
Dimmer adjustment range: 5-100%, stepless dimming and no flickering or humming.
Small size: 0.9*1.3*1.3 inch (including knob height); Wire length: 13 inch.

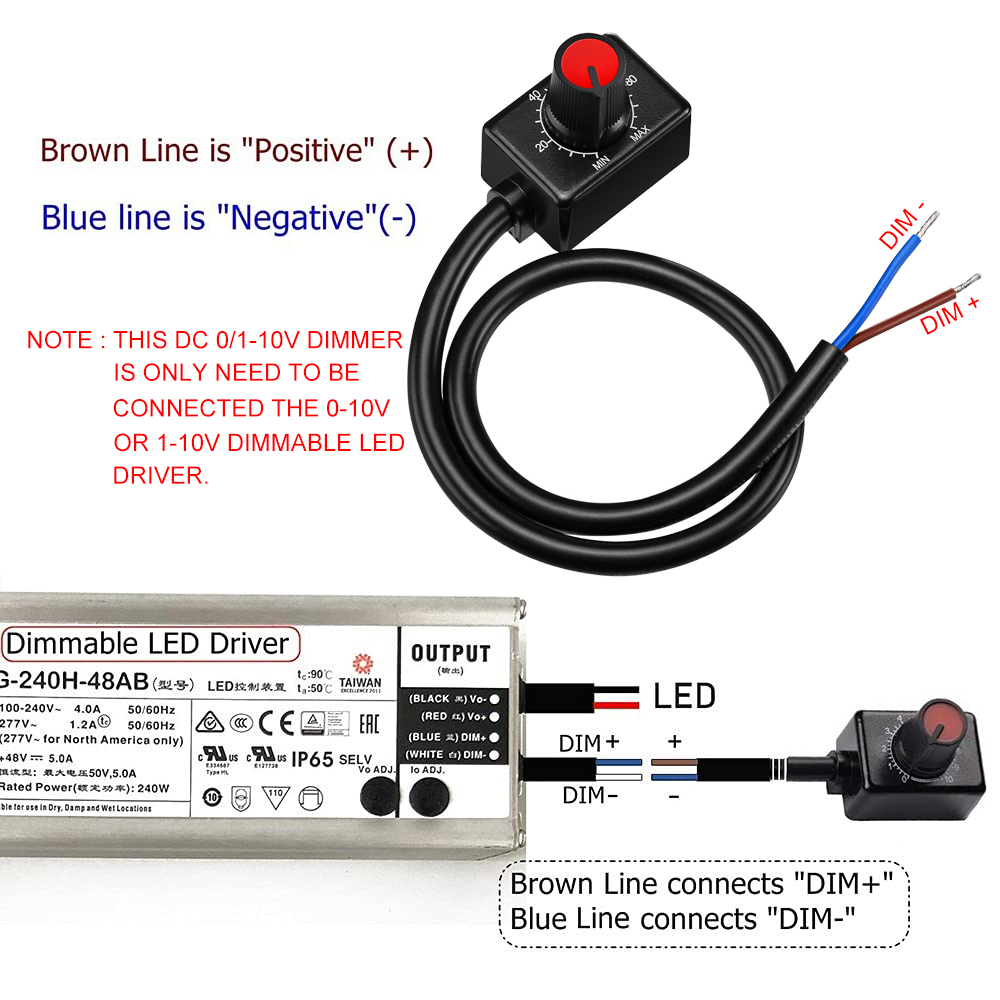

Easy to install. Brown line is "DIM +",Blue line is "DIM -". PLEASE NOTE: DO NOT connect it with AC power directly.

Specifications

● Regulation voltage: 0.5-10V

● Effective dimming signal current (Max.): 40mA

● Signal voltage: 0-10V

● Brown line is positive pole, connect with DIM+ on LED driver.

● Blue line is negative pole ,connect with DIM- on LED driver.

● 100% compatible with all the LED driver with 0-10V dimming signal.

● Working temperature: -15~50 ℃

● Dimension: 0.9*1.3*1.3 inch (including knob height).

● Wire length: 13 inch

● Installation: Surface mounted or recessed.
