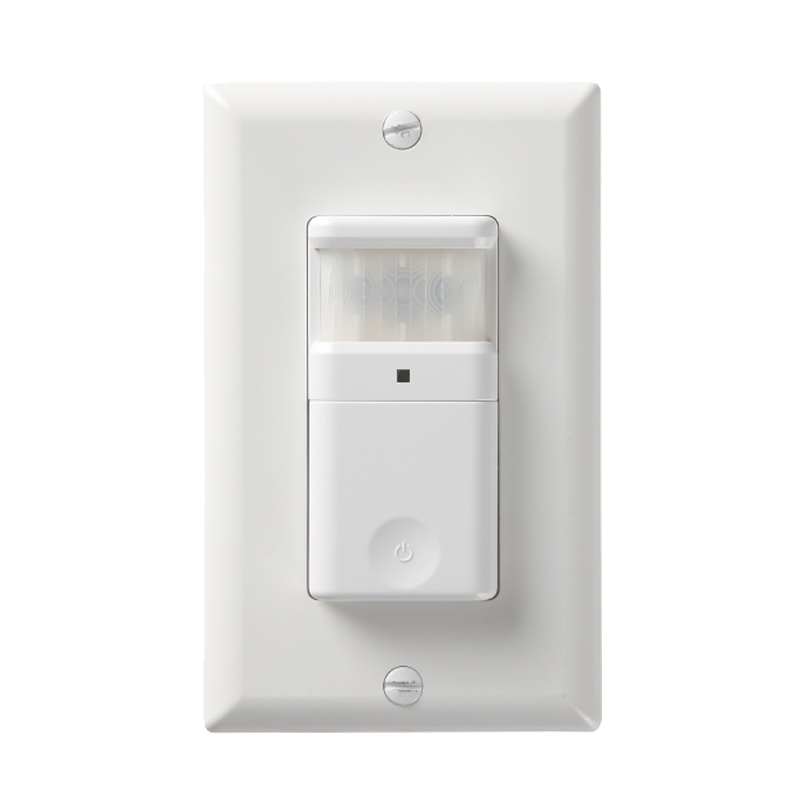

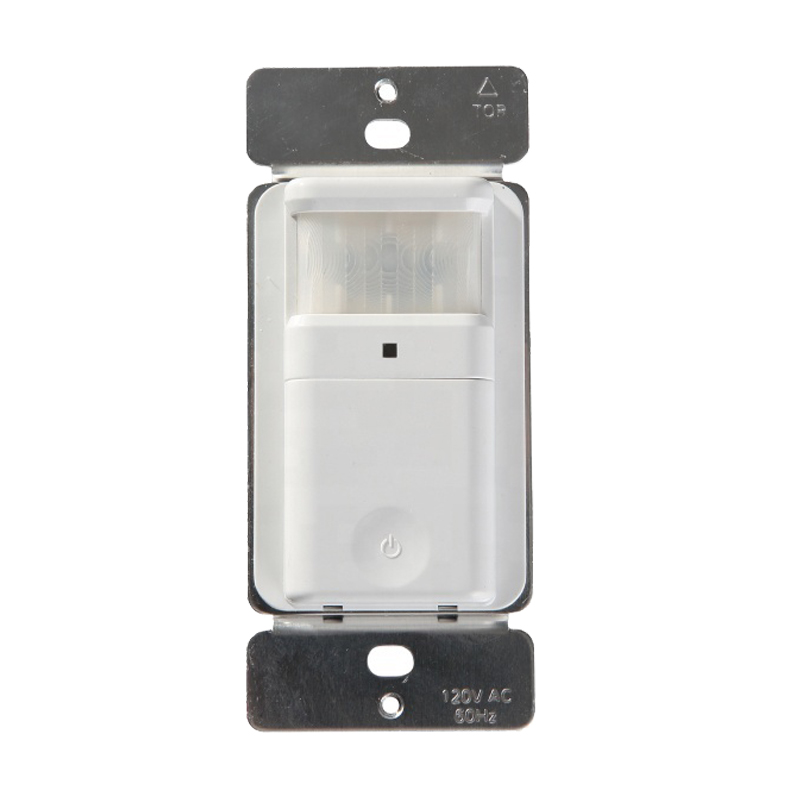

PIR Wall Mounted Occupancy Sensors AAG-001

Two Operation Modes

Time Delay
The time delay can be selected by the user during set up.
It can be adjusted from 5Secs to 5Mins.

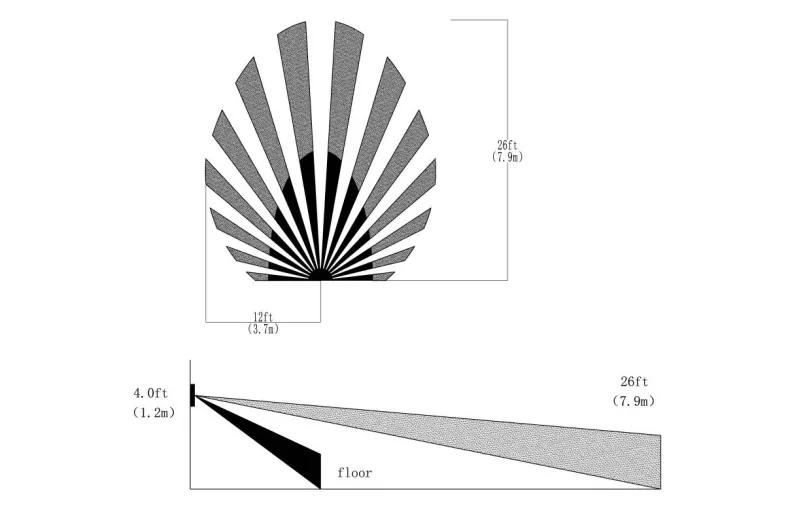

Coverage Area
The AAG-001 sensor switch has a maximum coverage range of 180 degrees. The sensor must have a clear and unobstructed view of the coverage area. Objects blocking the sensor`s lens may prevent detection thereby causing the light to turn off even though someone is in the area.

Windows, glass doors, and other transparent barriers will obstruct the sensor`s view and prevent detection.
Note: The coverage area date is measured under the best temperature condition(20~25℃), and a higher temperature may not lead to an ideal coverage area.

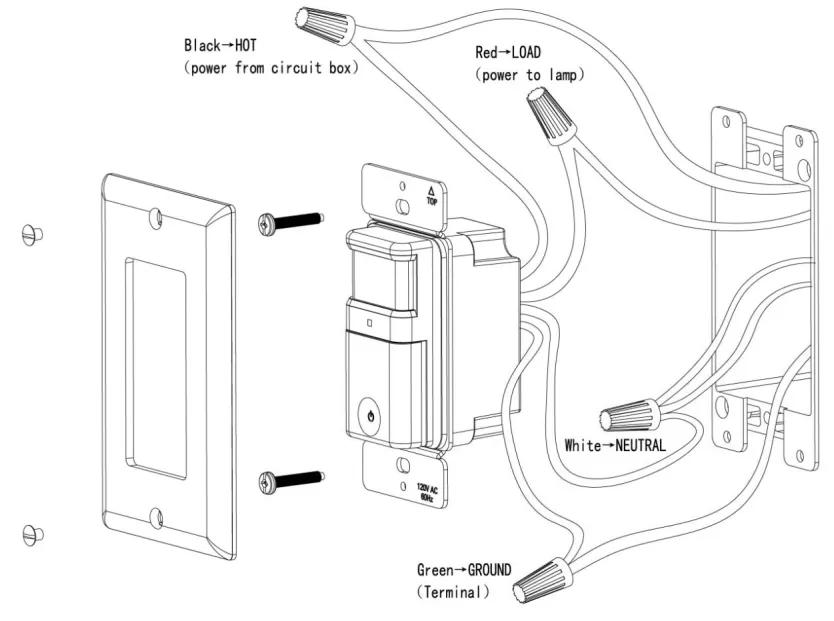

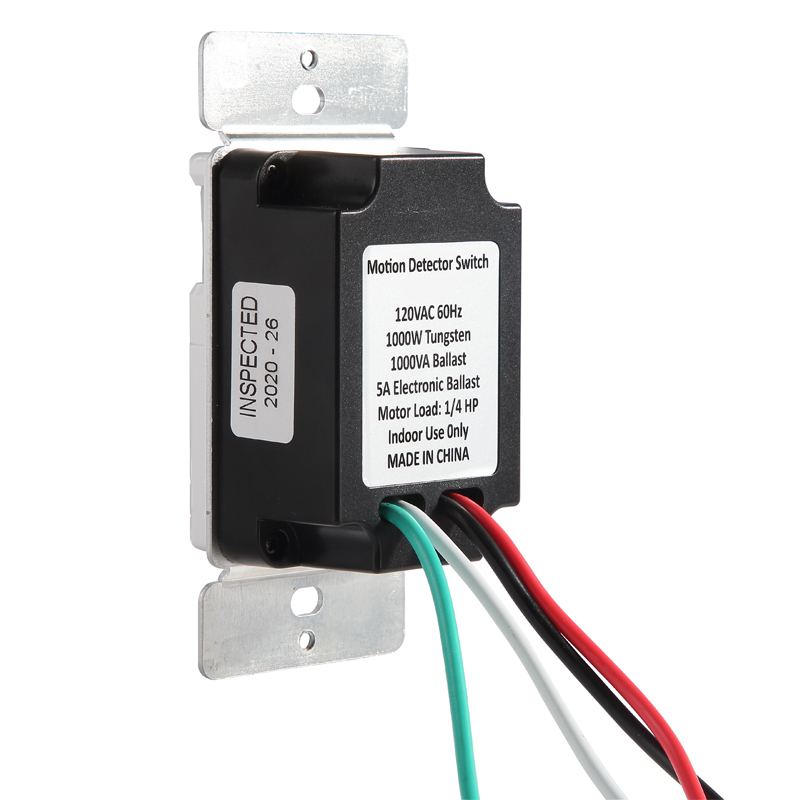

Wire in accordance with the appropriate wiring diagram shown on following. BLACK leads to LINE(HOT); RED leads to LOAD; GREEN leads to GROUND; WHITE leads to NEUTRAL. Twist the existing wires together with the wire leads on the AAG-001 sensor as indicated below. Cap them securely using the wire nuts provided.
