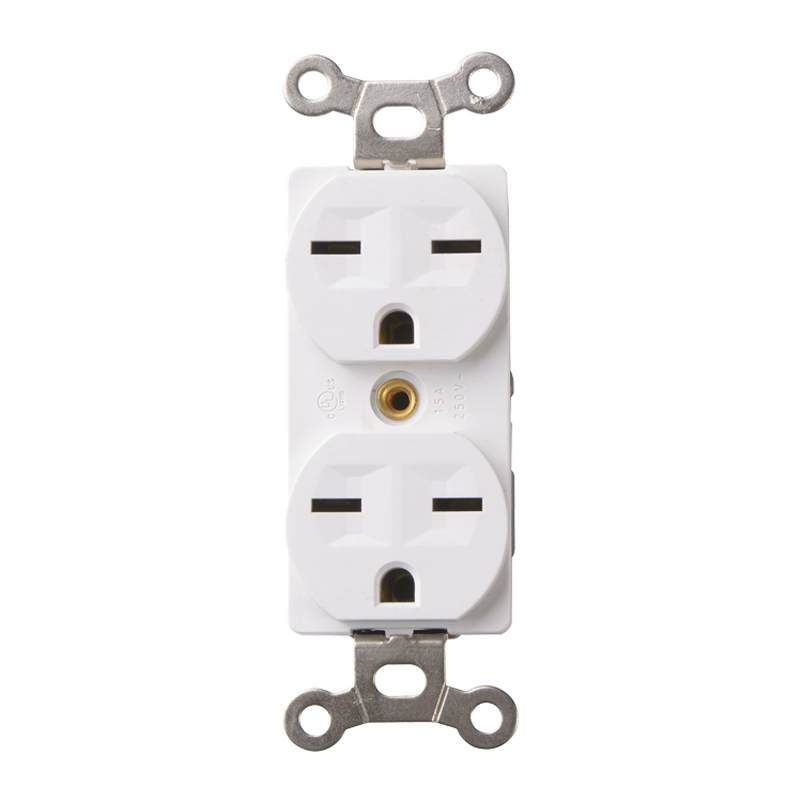

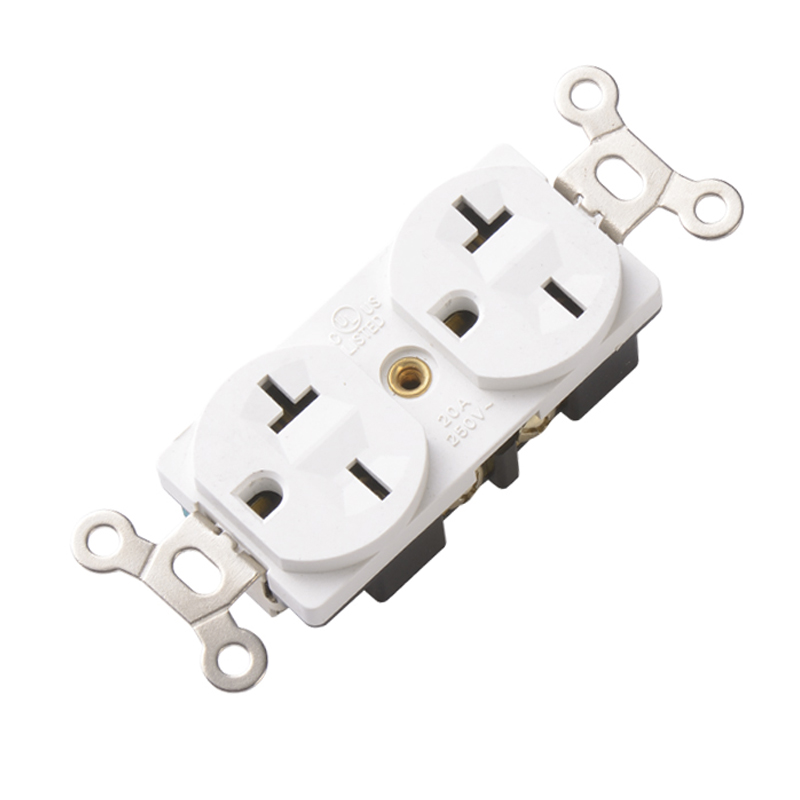

Industrial Grade 20amp 250V NEMA 6-20R Socket

Hooanke UL Approval Industrial grade duplex US straight blade receptacle 20amp 250V NEMA 6-20R socket outlet. Made from unbreakable Polycarbonate Thermoplastic material to withstand bending, twisting, fading, extreme heat, and heavy impacts. Using fire-resistant material and high quality components to prevent fire. Industrial places use. Compact design and easy to install.

Inquire Now Next Product

Main Features

Industrial Grade Duplex US Straight Blade Receptacle 20amp 250V NEMA 6-20R Socket Outlet

Specifications

Electrical Specifications
Grounding: Grounding
Amperage: 20 Amp
Voltage: 250 Volt
NEMA: 6-20R
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Body Material: PC
Back Cover: Thermoplastic
Wire Module: PC
Cord-Clamp: PC
Clamp Insert: PC
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .385 - .780
Wire Gauge: 16-10 AWG
Standards and Certifications: UL49

Features and Benefits
