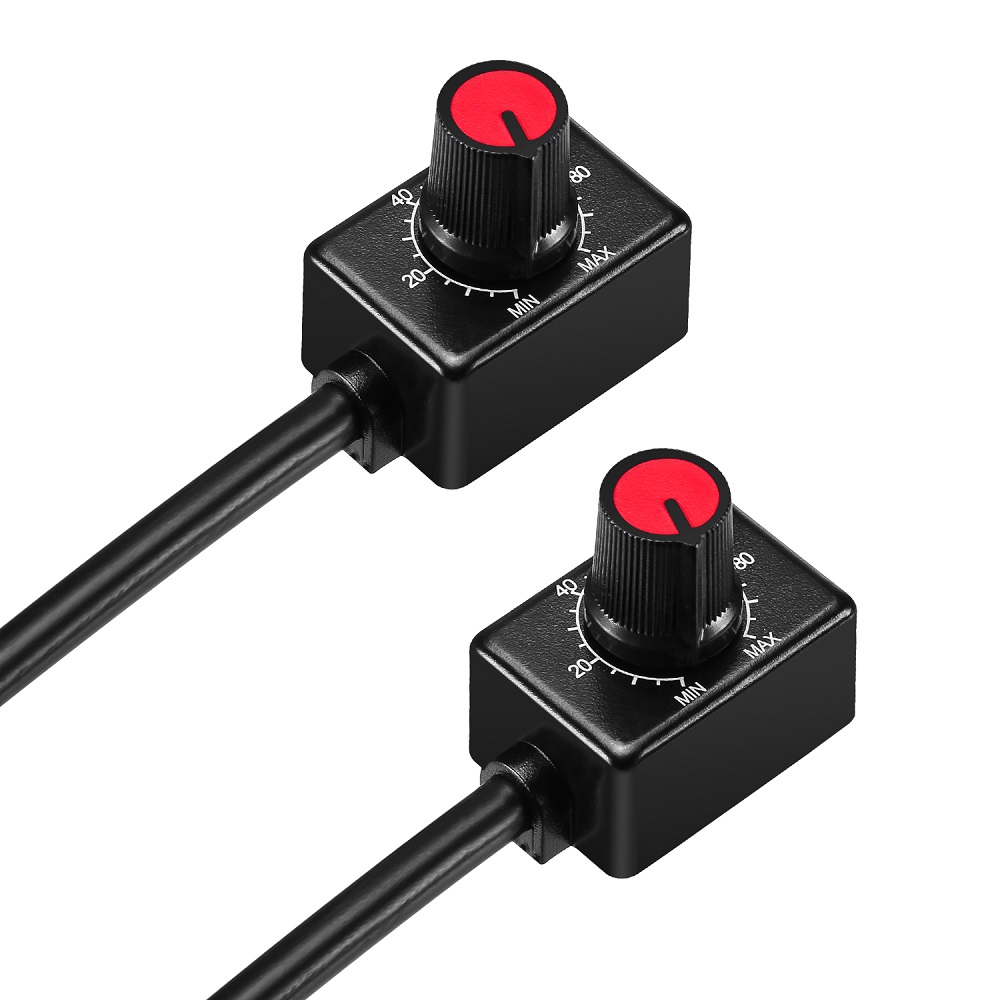

HOOANKE DC 0/1-10V Knob LED Dimmer

HOOANKE DC 0/1-10V Knob LED Dimmer (No Flickering or Humming), Low Voltage Passive Dimmer PWM Dimming for 0-10V or 1-10V Dimmable Electronic LED Driver

● The low voltage dimmer is for the LED lights that have a separate dimmer circuit. It's specifically made to drive a PWM circuit built into the light.

● Dimmer adjustment range: 5-100%, stepless dimming and no flickering or humming.

● Small size: 0.9*1.3*1.3 inch (including knob height); Wire length: 13 inch.

● Easy to install. Brown line is "DIM +",Blue line is "DIM -". PLEASE NOTE: DO NOT connect it with AC power directly.

PWM 0-10V Dimmer Adjustment Range: 5-100%, Stepless Dimming and No Flickering or Humming.

● Regulation voltage: 0.5-10V

● Effective dimming signal current (Max.): 40mA
● Signal voltage: 0-10V

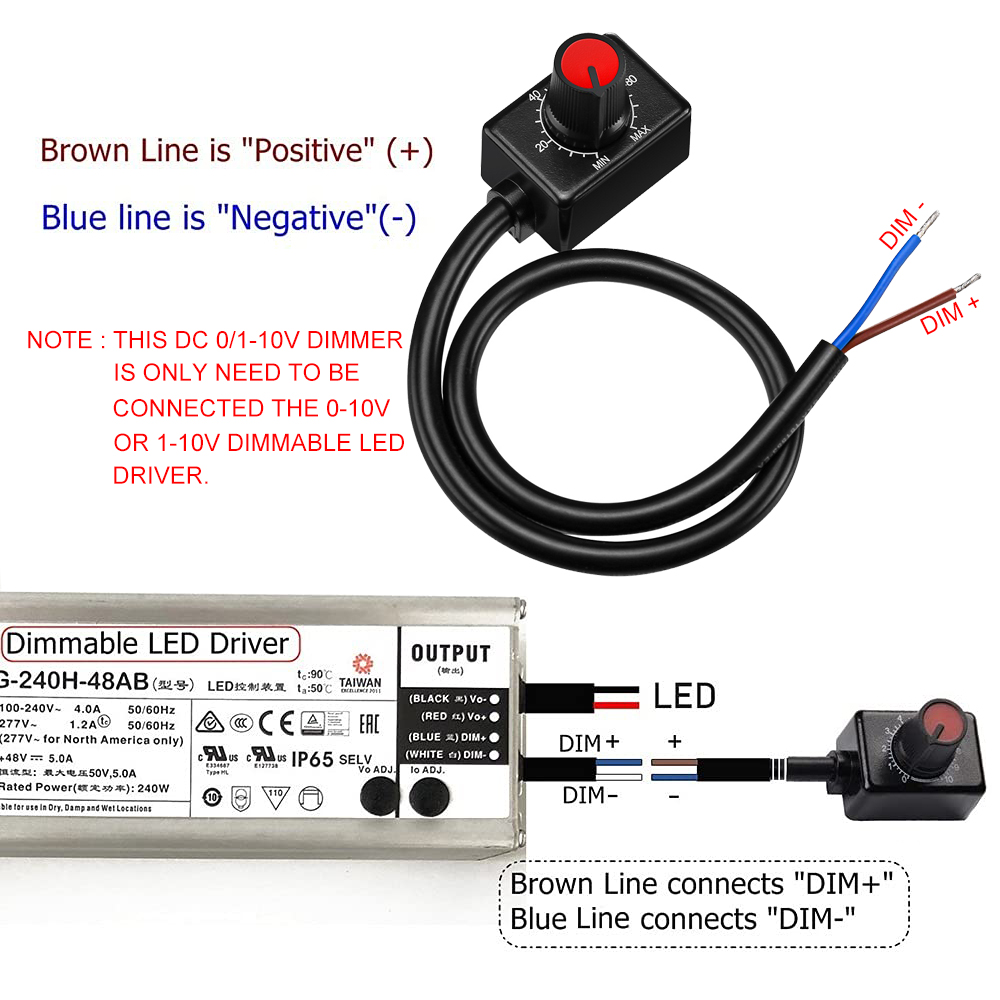

● Brown line is positive pole, connect with DIM+ on LED driver.

● Blue line is negative pole ,connect with DIM- on LED driver.
● Dimmer adjustment range: 5-100%, stepless dimming, no flicking and anti-interference.

● 100% compatible with all the LED driver with 0-10V dimming signal.
● Working temperature: -15~50 ℃
● Dimension: 0.9*1.3*1.3 inch (including knob height).
● Wire length: 13 inch
● Installation: Surface mounted or recessed.
