QC3.0 Wall Outlet KU-15TQ

1. Total output power: 20W

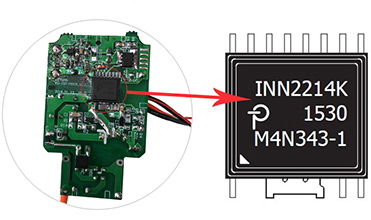

2. Main power chip: INN2215K, QC3.0, high safety coefficient.

3. The output QC protocol chip supports 7 kinds of fast charge agreements.

   ■ Support QC3.0/QC2.0 Class A

   ■ Qualcomm Certificate No.: 478786303-2

   ■ Support QC 3.0 Class A: 3.6V-12V (0.2V/ step)

   ■ Support QC2.0 Class A: 5V, 9V and 12V

   ■ Support Huawei FCP fast charge 5V and 9V voltage configuration

   ■ Support Samsung AFC fast charge 5V and 9V voltage configuration

   ■ Support Spreadtrum SFCP fast charge 5V, 9V and 12V voltage configuration

   ■ Support Apple 2.4A: DP=2.7V, DM=2.7V

   ■ Support Samsung 2.0A: DP=1.2V, DM=1.2V

   ■ Support BC1.2: DP and DM short circuit

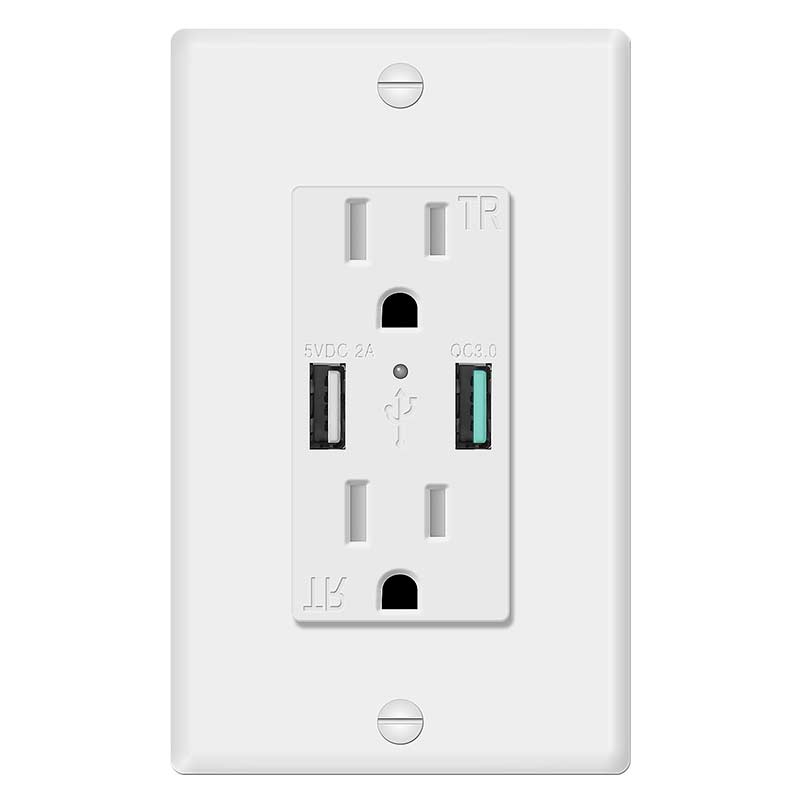

4. 2 USB ports: one is fast charge USB port with orange color; the other is normal USB port with Black color. (Or print “Fast” and “Normal” to distinguish)

5. Normal USB A port add DC/DC circuit. The two USB ports voltage does not affect each other

6. Total output power: 30w.

   ■ The fast charge USB port total output power could be up to: 5V/3A,9V/2A,12V/1.5A

   ■ The normal USB port total output power is 5V/2A

   ■ If the 2 USB ports work at the same time, voltage will be adjusted automatically

7. Rectifier output rectifier circuit with synchronous, improve overall product efficiency

8. Output filter circuit with solid capacitors, reducing ripple and noise

9. Dual output standby power consumption will be slightly higher, but INN2215K power standby power consumption to meet the US Energy Star

10. Response time less than 3s and hold time more than 10ms. Output voltage parameters will be automatically adjusted with different loads, the power supply has over-temperature protection (142 degrees Celsius), safety components in the product development process are in line with safety regulations

11. Input: 100-240V AC

12. Over-charging, over-current, and short-circuit protection
